EMI-Filter CNW 107.3/690 and CNW 107.3/480
High-current line filters (3 lines)
Description
The EMI filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed. This filter series is for the voltage levels of 480V and 690V constructed. The filter can be delivered in various casing versions. So it can be adapted to different environmental conditions.
There are also versions for offshore applications possible.
Advantages
- specifically desiged for high performances
- suitable for offshore applications
- compact design
- good heat dissipation
- rail connector
- fast installation
Typical applications
The EMI filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed.

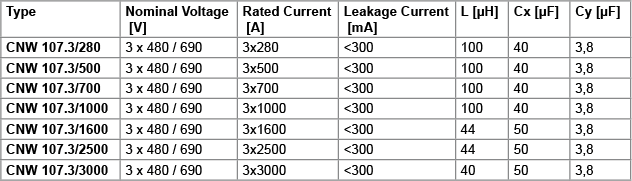

Technical specifications
- Conforming to: VDE 0565-3 / IEC 950 / UL 1283
- Test voltage: L-N 2100 V,DC 1s, L/N-PE 2700 V,DC 1s
- Overload: 1,5 x I 1 min/h
- Climatic category: DIN IEC 68 Teil 1 25/085/21

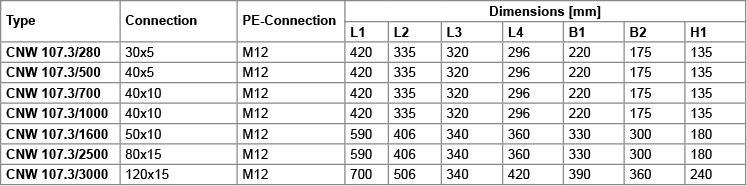

Dimensions in mm
